Display selected form on the page so it can be used and filled out by the user.

• • Allows for the creation of custom forms
  • Custom fields and properties that help gather data through user engagement
  • Can allow for one or multiple submissions
  • The widget properties can control whether a post back message or summary pie chart displays when a form is submitted.

• • Widget Name: FormWidget
  • Available With:  Release 4.1 and above
  • Content App Type: N/A
  • Content Type: N/A
  • Content App Name: Associated with Forms Manager (management app)
  • List Name: List is generated upon creation of Form
  • Recommended Images Sizes: N/A
  • Dependencies:  SharePoint

N/A

instructionset	Forms_AK.(#) this number corresponds to form being used
formtype	Determines what type of form it is option "survey" or blank
chartfield	If "formtype" = survey, enter a form column that is of type radio-group, that will be used to gather results.  The chartfield is acquired via the AppManager > Management App > Form Manager, from the value set in the "Name" input column of the item,  in this example radio-group-1594836764863
displaynonmodal	Checkbox to Display form on page or popup modal
Displayed Title	Title to be displayed on widget in certain views
formdescription	N/A
postback	N/A
referencelist	N/A
columnorder	N/A
siteid	N/A
formdefinition	N/A
actionbuttontext	N/A
charttitle	N/A
charttitlesize	N/A
Function to call before binding the UI events	OOTB -Blank (used for widget expansion):  Name of the function called after the UI has been rendered to the screen
Function to call after fetching data	OOTB -Blank (used for widget expansion):  Name of the function called after data has been fetched by the widget.
Site Collection URL	Site collection that the form originates from
Display chart results upon submission	The result for the field defined in the "chartfield" widget property, will display in a chart format.  If this is unchecked then the "Post Back" defined on the form definition will display.

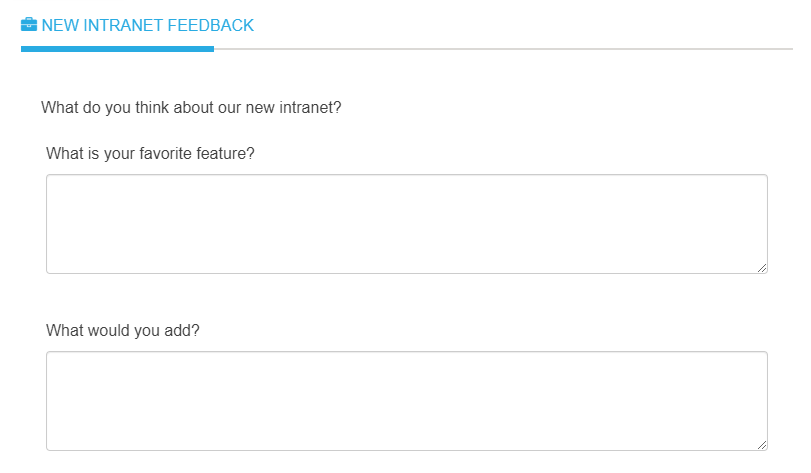

View Name:  Form

View Description:  Displays the form with the Title and header together

View Preview:

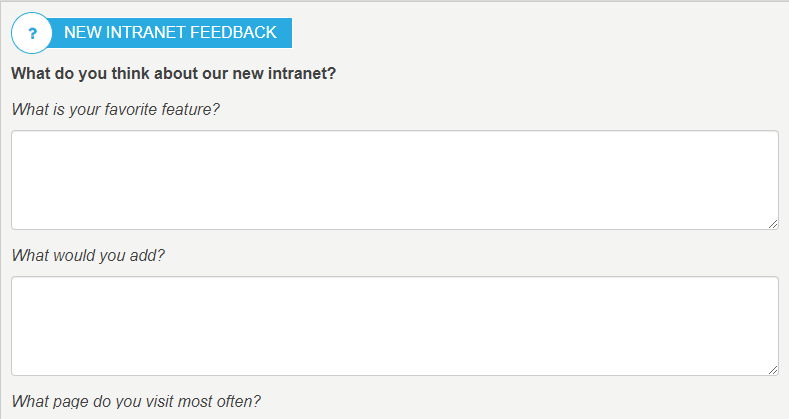

View Name:  Survey

View Description:  Displays the form with an icon next to the title and the header unbolded

View Preview:



View Name:  Survey - Modern

View Description:  Displays the form a question mark next to the title, a bold header, and italicized questions with limited height.

View Preview:



View Name:  Survey - Modern - Full

View Description: Displays the form a question mark next to the title, a bold header, and italicized questions with unlimited height.

View Preview:



View Name:  Title Form - Modern

View Description: Displays the form with a landscape icon next to the title and a bold header.

View Preview:



View Name:  PropertiesDisplayTitle

View Description: Displays the DisplayTitle property as the title with the header next to it

View Preview:



View Name:  PropertiesDisplayTitle - Modern

View Description: Displays the DisplayTitle property as the title with a landscape icon next to it and a bold header.

View Preview:
