Display a managed set of categories and links to be displayed as the Main navigation.

• • Features top level mega menu navigation with links and categories for the site.  Two levels of categories are supported on the "Default" view.
  • Allows for an unlimited number of top level links and categories.
  • Using the default view, category and links can have an associated icon.
  • Link management is done in the AppManager content app "Navigation",  which allows for drag/drop, tree style UI for adding categories and links.
  • Menu items honor user’s SharePoint permissions
  • Personas can be applied to categories and links.
  • Using the "business" view, this widget can be used to define a mega menu  from a "starting" category (set on the widget property) with subcategories to include tile (background color with icon) that links.

• • Widget Name: FoundationTopNavigationWidget
  • Available With:  Release 4.5 and Above
  • Content App Type: QuickLinks (Working with Quick Link Apps)
  • Content Type: FoundationTopNavigation
  • Content App Name: Navigation
  • List Name: FoundationTopNavigation_AK
  • Recommended Images Sizes: N/A
  • Dependencies:  SharePoint, Quick Links Widget





Root Node Title	This is the title of the root of the quicklinks and not displayed on the front end.
Category - Link Label	Title that displays for this category.
Category - Link	Categories can link, if set this is the url the user will navigate to when selecting the category
Category - Is Akumina Page	Checked by default, uncheck this when you want to link to a modern SharePoint site page outside to of the Akumina environment.
Category - Active	If checked then the category is active and displays on the front end.
Category - Open With	When the category is selected, the link can be configured to open in the Same Window or New Window.
Category - Icon	Icon to display along with the category title.
Link - Link Label	Link Text to appear under the links icon or image
Link - Link	URL - When the icon is selected the user will navigate to this link
Link - Is Akumina Page	Checked by default, uncheck this when you want to link to a modern SharePoint site page outside to of the Akumina environment.
Link - Active	If checked then this link will appear on the widget
Link - Open With	Choices - Same Window or New Window, determines if the link opens in a new browser tab or not
Link - Icon	Icon to display along with the link label
Link - Spalink	N/A
Link - JSFunction	Js function can be added to this link to call when the link has been selected.
Link - TileBackgroundColor	Background color that the icon will display on if using the "business" view.  The background colors is not controlled via the Theme manager.  The background color is set as choices options in the supporting list's "TileBackgroundColor" this  can be expanded by editing the column and adding additional choice option, adding your site branding colors example by adding: #e69138 orange, orange will be added as a TileBackgroundColor choice.
Form - Form Link Label	Title to appear under the form links icon or image
Form - Active	If checked then this form link will appear on the widget
Form - Link	Using the "Browser Form" modal a link to the selected form.
Form - Icon	Icon to display along with the form link label
Form - Spalink	N/A
Form- JSFunction	N/A
Form - TileBackgroundColor	Background color that the icon will display on if using the "business" view.  The background colors is not controlled via the Theme manager.  The background color is set as choices options in the supporting list's "TileBackgroundColor" this  can be expanded by editing the column and adding additional choice option, adding your site branding colors example by adding: #E69138 orange, orange will be added as a TileBackgroundColor choice.

Selected list columns	N/A - This should be BLANK for content managed via a AppManager quicklinks app type because there are certain required columns that cannot be changed to display the navigation. Use widget property "Additional selected list columns" to expand select list columns for this widget.
Cache Interval	- 1 - is default Sets the time, in minutes, that the data should be saved in the local browser cache of the current user. 0 = Do not cache the data for this widget -1 = Use the default caching strategy set via Site Creator Whole Number = Cache for specific time, in minutes
Function to call after fetching data	OOTB -Blank (used for widget expansion):  Name of the function called after data has been fetched by the widget. If using the "Business" view then this needs to be set to: FoundationTopNavigationBusinessCallback
List Name	Name of the SharePoint list that contains the data to be displayed for this widget instance.
List is on Root Site	When checked, the widget references the list on parent/root site collection.
Displayed Title	If a value is entered, then the title will appear on the header of the App
Icon	Selects the icon that is displayed to the left of the widget title
Additional selected list columns	Any additional select fields (beyond content type AkuminaQuickLinks) gets added here in order to expand the widget.
startcategory	For the "business" view, identifies the starting category to display a list of subcategories and links with Tilebackgroundcolor and icon links.  If this is a multilingual site then the category for each language must be listed with a comma separation with no space.  Example:  Corporate,Corporativa
Site Collection URL	Site collection URL where the SharePoint list defined in "List Name" can be found.
Function to call before binding the UI events	OOTB -Blank (used for widget expansion):  Name of the function called after the UI has been rendered to the screen

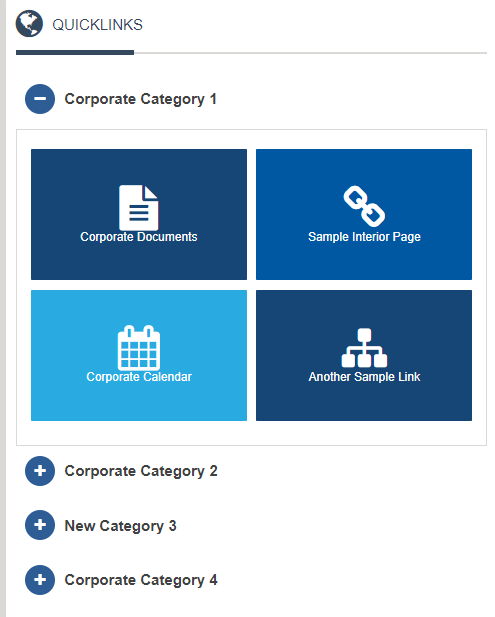

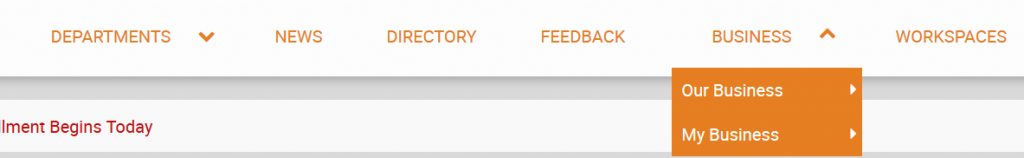

View Name:  MegaMenu View Description:  A row of top navigation menu items, that has a mega menu dropdown interface, supports two levels of categories.  Sub level categories display in one pane. View Preview: View Name: Business View Description: Display a list of categories and links in a tiled view from a starting category set on the widget property "Start Category".  The background colors are expandable on the SharePoint list definition by expanding column "TileBackgroundColor".  The "starting category" must have subcategories to expand for this view. Example below "Corporate" would be the Starting category that has several child categories of links, in this example "Corporate Category 1" and "Corporate Category 2"..... View Preview: View Name: default View Description: FS2 site supported only, display a row of links and top level categories.  This view supports two levels of categories with the second level of category links displaying when the second level category is selected. View Preview:
